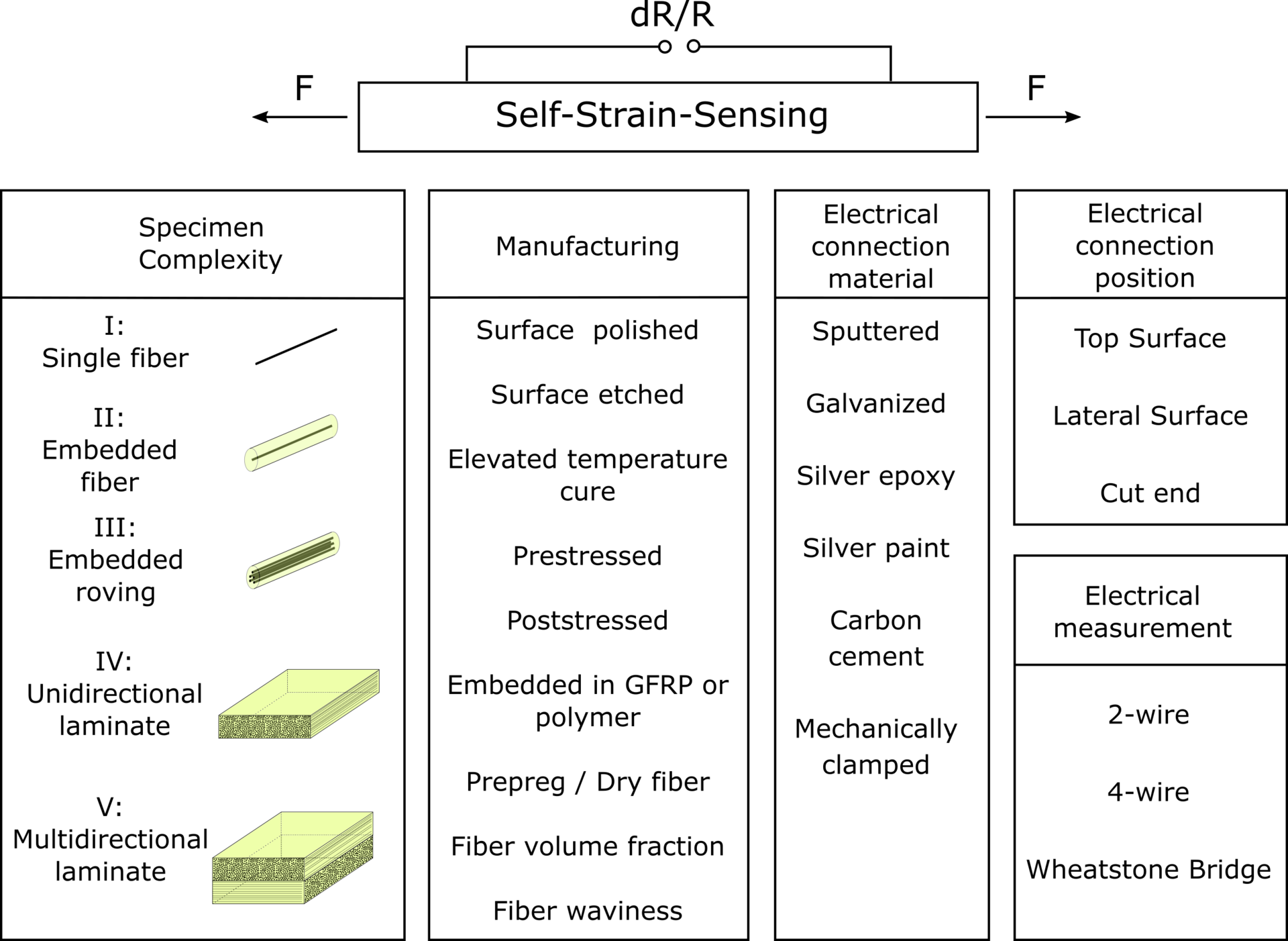

This literature review examines the application of carbon fibers and their reinforced plastics for Self-Strain-Sensing structures and gives an up-to-date overview of the existing research. First, relevant basic experimental approaches that can be found in the literature are presented and discussed. Next, we propose to cluster the available articles into 5 categories based on specimen size and ranging from experiments on bare carbon fiber via impregnated fiber rovings to carbon fiber laminates. Each category is analyzed individually and the potential differences between them are discussed based on experimental evidence found in the past. The overview shows, that the choice of carbon fiber and the specific experimental setup both significantly influence the piezoresistive properties measured in Self-Strain-Sensing carbon fiber reinforced plastics. Conclusively, based on the conclusions drawn from the literature review, we propose a small number of measurements that have proven to be important for the analysis of Self-Strain-Sensing carbon fiber structures.
P. Scholle, M. Sinapius
A Review on the Usage of Continuous Carbon Fibers for Piezoresistive Self Strain Sensing Fiber Reinforced Plastics
J. Compos. Sci. 2021, 5, 96, (2021) [Link]
